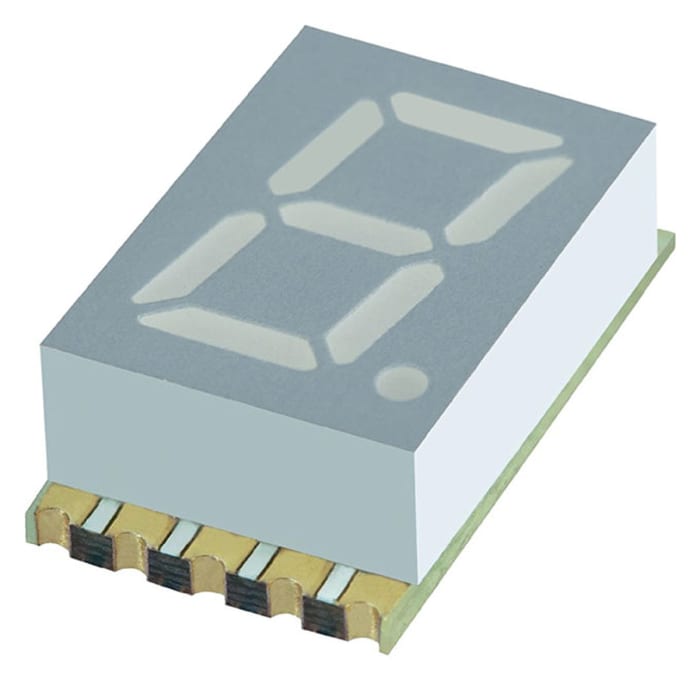

Kingbright KCSA56-123 7 Segment LED Display (Gösterge), CA, Yeşil 25 mcd, RH DP 14,2mm

Kingbright Single Digit, 12.7 to 14.2mm A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	1
LED Colors	Green
Number of Segments	7
Dominant Wavelength	570 nm
Character Width	8mm
Character Height	14.2mm
Common Connection	Anode
Mounting Type< /strong>	Surface Mount
External Depth	12.4mm
External Dimensions	19 x 12.4 x 3.8mm
External Height< /strong>	3.8mm
External Width	19mm
Luminous Intensity	25 mcd
Face ColorGray
Forward Voltage	2.1 V
Power Loss	75mW
Minimum Operating Temperature	-40°C
Series	KCSA56
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Decimal Direction	Right Side
Origin	CN

KCSA56-123 with product code You can purchase Kingbright branded Kingbright KCSA56-123 7 Segment LED Display (Gösterge), CA, Yeşil 25 mcd, RH DP 14,2mm product from our company.
