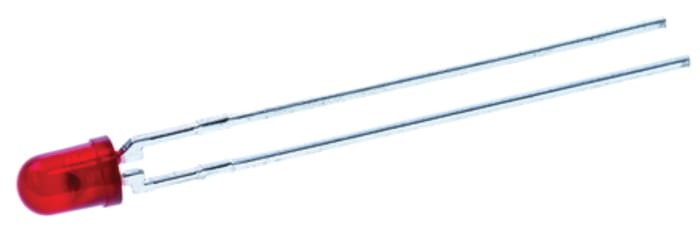

Kingbright L-7104ID-5V Kırmızı LED 617 nm, Yuvarlak Mercekli, İğne Bacaklı 3 mm (T-1)

Kingbright Through Hole Resistor LED Series The resistor LED lamps, from Kingbright, are available in 3mm and 5mm package options. The LEDs have an integral current limiting resistor. The resistor LEDs do not require an external current limiter with 12 volt supply. This allows the resistor LEDs to be a cost effective solution, saving valuable space and eliminating the additional cost for a resistor. There are a variety of colour options available in the resistor range, with a wide viewing angle

Brand	Kingbright
LED Colors	Red
LED Color(s)	Red
Package Type	3 mm (T-1)
Mounting Type
strong>	Through Hole
Number of LEDs	1
Forward Voltage	6 V
Luminous Intensity	25 mcd
Number of Pins	2
Viewing Angle	40°
Lens Shape	Round
Dominant Wavelength	617 nm
< strong>Dimensions	2.9 (Dia.) x 4.6mm
Lens Color	Red
Origin	CN

L-7104ID-5V with product code You can purchase Kingbright branded Kingbright L-7104ID-5V Kırmızı LED 617 nm, Yuvarlak Mercekli, İğne Bacaklı 3 mm (T-1) product from our company.
