Linear Inductive Position Sensor 4 ... 20 mA 100mm 0.15% 120Ohm Clamp Mount Connector, M8, 3-Pin LS1

Home Products Uncategorized Linear Inductive Position Sensor 4 ... 20 mA 100mm 0.15% 120Ohm Clamp Mount Connector, M8, 3-Pin LS1
Linear Inductive Position Sensor 4 ... 20 mA 100mm 0.15% 120Ohm Clamp Mount Connector, M8, 3-Pin LS1

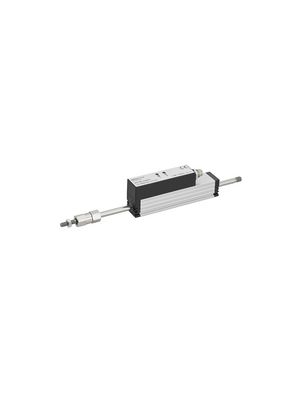

LS1-0100-001-421-101 Novotechnik Linear Inductive Position Sensor 4 ... 20 mA 100mm 0.15% 120Ohm Clamp Mount Connector, M8, 3-Pin LS1

Brand: Novotechnik Product code:LS1-0100-001-421-101 Datasheet
Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.
Explanation
Linear Inductive Position Sensor, Type=LS1-0100-001-421-101, Accuracy (%)=-999, Displacement Speed=5 m/s, Linearity (±)=0.15 %, Operating Temperature Max.=85 °C, Operating Temperature Min.=-40 °C, Operating Voltage Max.=30 V, Operating Voltage Min.=16 V, Rated Power=1 W, Resistance=120 Ω, Stroke Length - Electrical=100 mm, Stroke Length - Mechanical=105 mm, Linear Position Sensor Output Type=4 ... 20 mA, Mounting Type=Clamp Mount, Protection Rating=IP40, Termination Type=Connector, M8, 3-Pin, Series=LS1

LS1-0100-001-421-101 with product code You can purchase Novotechnik branded Linear Inductive Position Sensor 4 ... 20 mA 100mm 0.15% 120Ohm Clamp Mount Connector, M8, 3-Pin LS1 product from our company.
