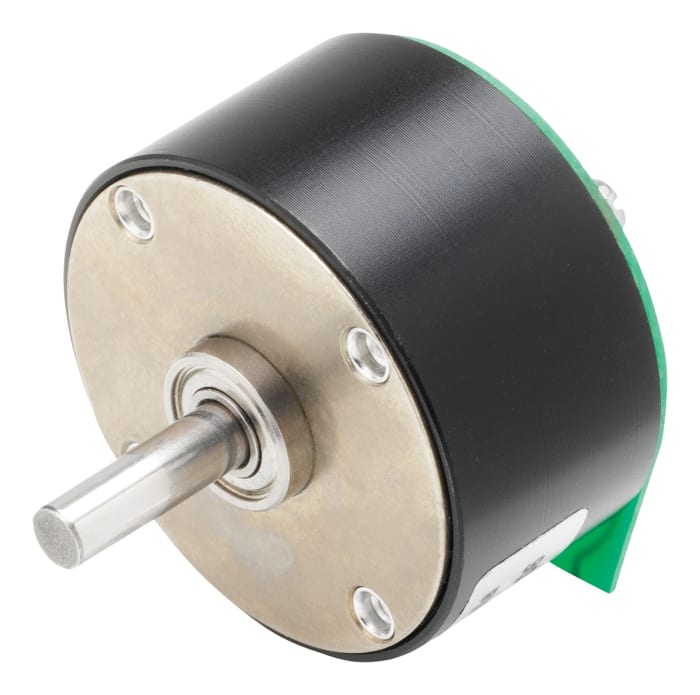

Portescap Disk Mıknatıslı Step Motoru, Bipolar, 720 mA, 14mNm, 8 Kablolu, 6°

Portescap Disk Magnet Stepper Motor Portescap Disc Magnet Motors provide exceptional dynamic performance unparalleled by any other small diameter stepper in the market. The unique thin disc magnet enables finer step resolutions in a given envelope, significantly higher acceleration and greater top speed than conventional steppers.
These high speed stepper motors excel in applications that require the precision of a stepper and the speed and acceleration of a brushless DC motor. Closing the

Brand	Portescap
Stepper Motor Type	strong>	Disc Magnet
Step Angle	6°
Holding Torque	14mNm
Number of Cables	8
Supply Voltage	4 V
Frame Size	32 x 35.5mm
Shaft Diameter	4mm
Current Value	360 mA
Winding Arrangement	Series
Shaft Length	10.5mm
Number of Pole Pairs	15
Resistance Per Step< /strong>	10.5Ω
Output Speed	11,500 rpm
Standards Met	RoHS Compliant
Holding Torque	2.5mNm
Maximum Output Torque	14 mNm
Origin	IN

P310-158-005.10 with product code You can purchase Portescap branded Portescap Disk Mıknatıslı Step Motoru, Bipolar, 720 mA, 14mNm, 8 Kablolu, 6° product from our company.
