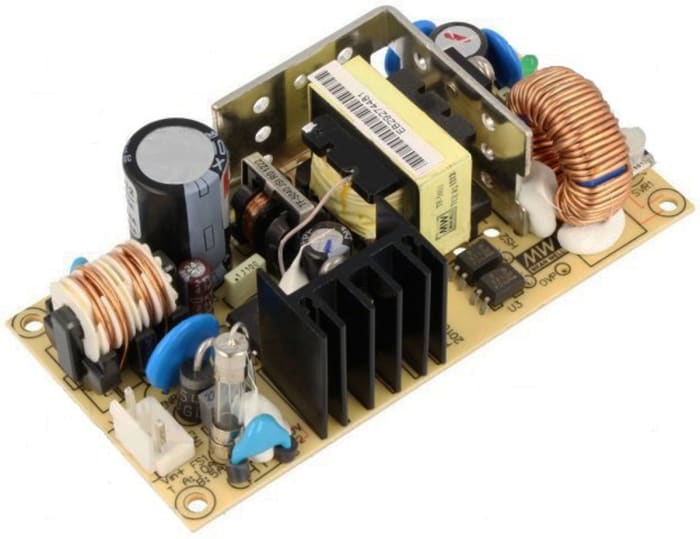

PSD-30B-05 Mean Well Mean Well İzoleli DC-DC Dönüştürücüsü, 18 → 36 V

PSD-30B-05 Mean Well Mean Well İzoleli DC-DC Dönüştürücüsü, 18 → 36 V dc / 5V, 25W, G/Ç İzolasyonu: 1,5kV ac

Brand: Mean Well Product code:PSD-30B-05

Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.

Company Name

Authorized person

Telephone

E-mail address

Offer Note

I have read, understood and accepted KVKK and Privacy Text.

Explanation

Mean Well (PSD-30 Series) Single Output Module DC-DC Converter The Mean Well PSD-30 Series brings reliability alongside great affordability. This series of DC-DC Converter is highly compliant with industrial standards such as EN55032, EN61000-4-2,3,4,6,8, and more. Lightweight and compact in size, the PSD series is perfect for applications/projects requiring space-saving.

This series is robust enough to work under temperatures of -20 to +60℃, has low ripple and noise, and great

Brand Mean Well
Output Voltage
strong> 5V dc
Input Voltage Range 18 → 36 V dc
Power Rating 25W
Input Voltage Nominal Value< /strong> 24 V dc
Output Current 5A
Mounting Type Chassis Mounted
InsulatedYes
Number of Outputs 1
Insulation Voltage 1.5kV ac
Length 101.6 mm
Width 50.8mm
Depth 30mm
Series PSD 30
Load Arrangement ±1%
Standards Met CE Certified, EN 55022 (CISPR22) Class B, EN 55024, EN 61000-4-2, -3, -4, -6, -8, ENV 50204
Minimum Temperature -20°C
Efficiency 79%
Maximum Temperature +60°C

PSD-30B-05 with product code You can purchase Mean Well branded Mean Well İzoleli DC-DC Dönüştürücüsü, 18 → 36 V dc / 5V, 25W, G/Ç İzolasyonu: 1,5kV ac product from our company.
