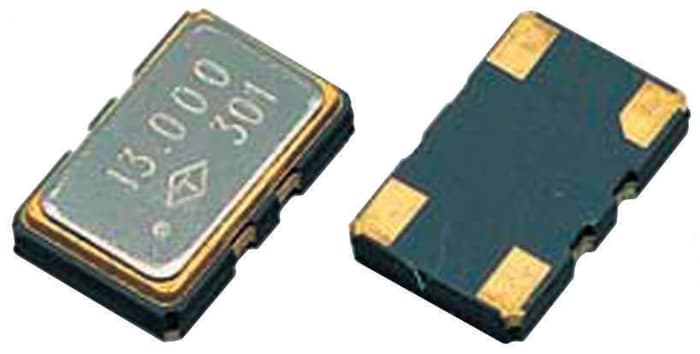

TAITIEN 20MHz TCXO Oscillator, Clipped Sinewave ±0.5ppm SMDR0053-T-040-3

Taitien TV Series The TV series of temperature compensated crystal oscillators from Taitien are a lightweight compact solution with low power consumption. TV crystal oscillators are suitable for automatic assembly and are offered in a standard 5 x 3.2 x 1.1 mm ceramic surface mount package. This series also features a CMOS and clipped sine wave output.

Brand	TAITIEN
Oscillator Type	TCXO
Output Frequency	20MHz
Frequency Stability	±0.5ppm
Load Capacitance	10pF
Package Type	SMD
< strong>Output Level	Chopped Sine Wave
Dimensions	5 x 3.2 x 1.2mm
Maximum Supply Voltage	5V
< strong>Minimum Operating Temperature	-30°C
Maximum Operating Temperature	85°C
Height	1.2mm
< strong>Origin	CN

R0053-T-040-3 with product code You can purchase TAITIEN branded TAITIEN 20MHz TCXO Oscillator, Clipped Sinewave ±0.5ppm SMDR0053-T-040-3 product from our company.
