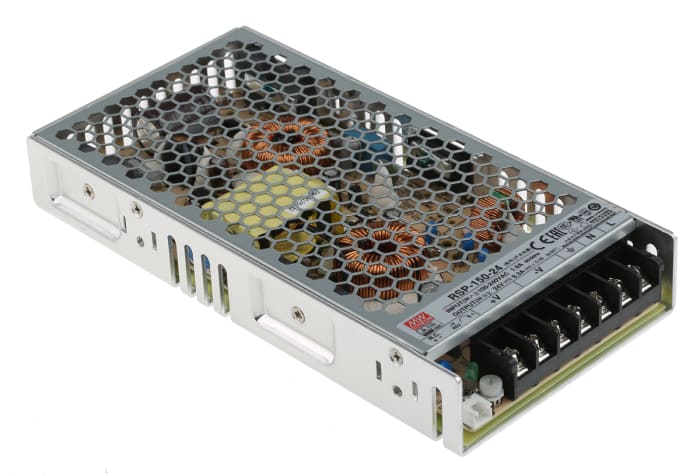

Mean Well Switching Power Supply, RSP-150-24RS, 24V dc, 6.3A, 151W, 1 Output, 120 → 370 V dc, 85 → 264 V

RSP-150 Series Single Output Power Supply with PFC Function The RSP-150 Series is a new generation of 150W AC/DC low profile, single output, enclosed type, switching power supply. This switch mode power supply reduced its height by 40%, from the 50mm of the previous models to 30mm. The RSP-150 features up to date high performance circuit topology, PFC function and possess up to 90% high efficiency. This enclosed power supply can be cooled by free air convection from -30°C to +40°C, or +5

Brand	Mean Well
Output Voltage
strong>	24V dc
Output Current	6.3A
Power Rating	151W
Number of Outputs	1
Input Voltage	120 → 370 V dc, 85 → 264 V ac
Mounting Type	Chassis Mounted
Package Type	Closed
Length	199mm
Width	99mm
Depth	30mm
Efficiency	89%
Minimum Temperature< /strong>	-30°C
Weight	600g
Maximum Temperature	+70°C
Origin	CN

RSP-150-24 with product code You can purchase Mean Well branded Mean Well Switching Power Supply, RSP-150-24RS, 24V dc, 6.3A, 151W, 1 Output, 120 → 370 V dc, 85 → 264 V product from our company.
