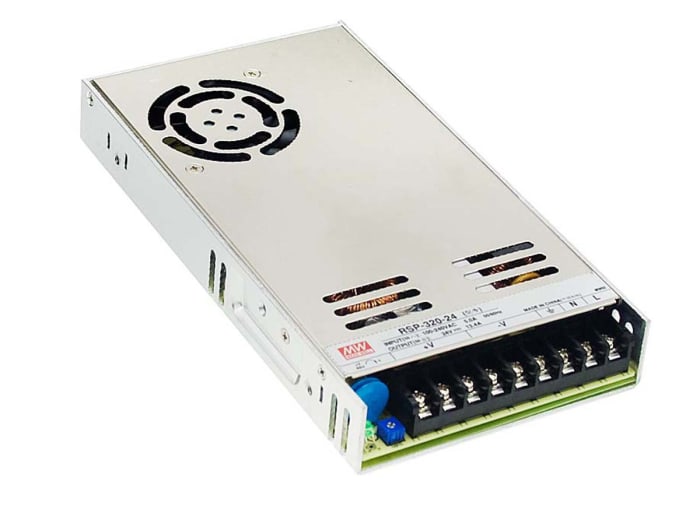

Mean Well Switching Power Supply, RSP-320-5RS, 5V dc, 60A, 300W, 1 Output, 124 → 370 V dc, 88 → 264 V ac

RSP-320 Series Single Output Power Supply with PFC Function The RSP-320 is 40% smaller in size compared to corresponding models. With 90% of high efficiency and the PFC function the RSP-320 can be cooled by the built in long life DC fan from -30℃ to +50℃ ambient temperature under full load condition and up to +70℃ by suitable de rating.
This Power supply comes with protection for short circuit, over load, over voltage and over temperature. The RSP-320 is suitable for genera

Brand	Mean Well
Output Voltage
strong>	5V dc
Output Current	60A
Power Rating	300W
Number of Outputs	1
Input Voltage	124 → 370 V dc, 88 → 264 V ac
Mounting Type	Chassis Mounted
Package Type	Closed
Length	215mm
Width	115mm
Depth	30mm
Efficiency	85%
Maximum Temperature	85% strong>	+70°C
Weight	900g
Minimum Temperature	-30°C
Origin	CN

RSP-320-5 with product code You can purchase Mean Well branded Mean Well Switching Power Supply, RSP-320-5RS, 5V dc, 60A, 300W, 1 Output, 124 → 370 V dc, 88 → 264 V ac product from our company.
