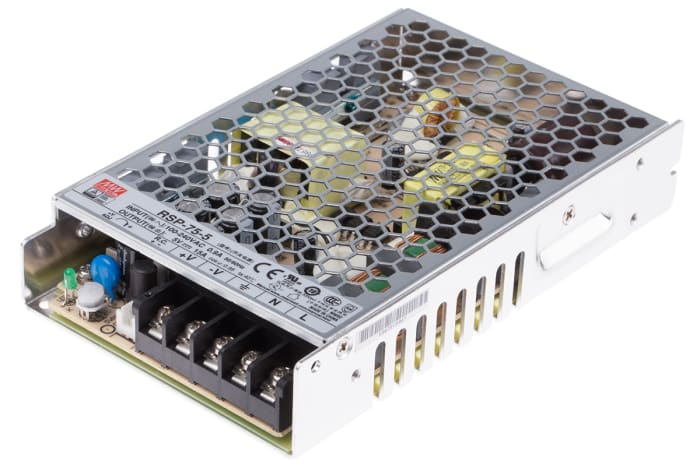

Mean Well Switching Power Supply, RSP-75-5RS, 5V dc, 15A, 75W, 1 Output, 120 → 370 V dc, 85 → 264 V ac

Mean Well RSP-75 Series 75W AC-DC Enclosed Switch Mode Power Suuplies The Mean Well RSP-75 Series is a range of 75W AC/DC low profile, single output, enclosed type, switching power supply. The RSP-75 features up to date high performance circuit topology, PFC function and possess up to 89% high efficiency. This enclosed power supply can be cooled by free air convection from -30°C to +40°C, or +50°C ambient temperature under full load condition and even +70°C by suitable derating.

Brand	Mean Well
Output Voltage
strong>	5V dc
Output Current	15A
Power Rating	75W
Number of Outputs	1
Input Voltage	120 → 370 V dc, 85 → 264 V ac
Mounting Type	Chassis Mounted
Package Type	Closed
Length	159mm
Width	97mm
Depth	30mm
Efficiency	82%
Minimum Temperature	82% strong>	-25°C
Weight	440g
Maximum Temperature	+70°C

RSP-75-5RS with product code You can purchase Mean Well branded Mean Well Switching Power Supply, RSP-75-5RS, 5V dc, 15A, 75W, 1 Output, 120 → 370 V dc, 85 → 264 V ac product from our company.
