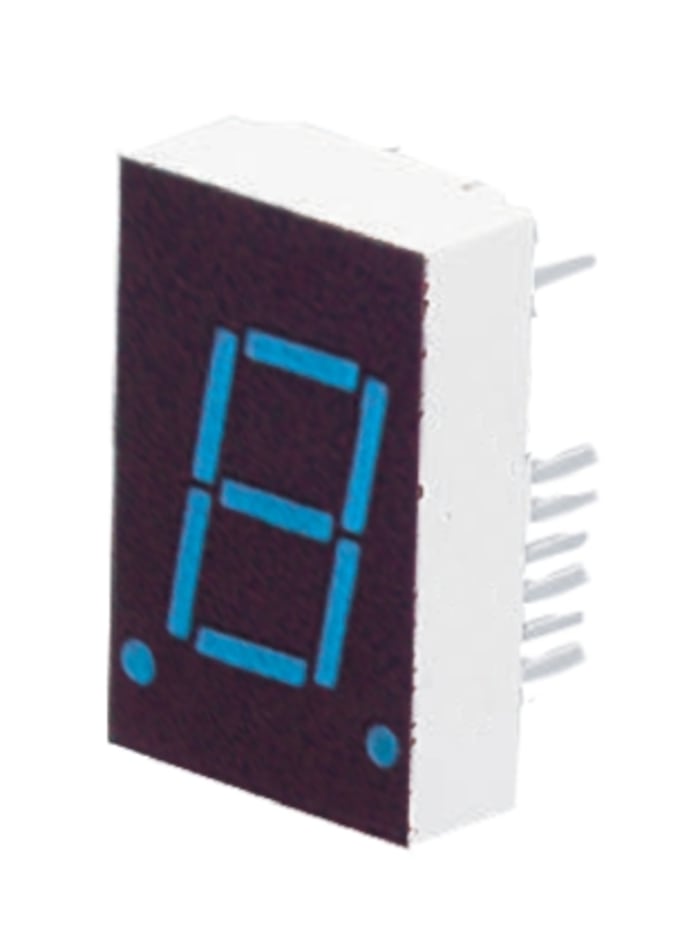

SA08-11PBWA Kingbright 7 Segment LED Display (Gösterge), CA, Mavi 4,7 mcd, RH DP 20,3mm

Kingbright Single Digit, 20.3 to 26.0mm A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	1
LED Colors	Blue
Number of Segments	7
Dominant Wavelength	470 nm
Character Width	11mm
Character Height	20.3mm
Common Connection	Anode
Mounting Type< /strong>	Through Hole
External Depth	8.4mm
External Dimensions	27.7 x 20 x 8.4mm
External Height< /strong>	27.7mm
External Width	20mm
Luminous Intensity	4.7 mcd
Face ColorGray
Forward Voltage	3.2 V
Power Loss	120mW
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Decimal DirectionRight Side
Minimum Operating Temperature	-40°C
Origin	CN

SA08-11PBWA with product code You can purchase Kingbright branded SA08-11PBWA Kingbright 7 Segment LED Display (Gösterge), CA, Mavi 4,7 mcd, RH DP 20,3mm product from our company.
