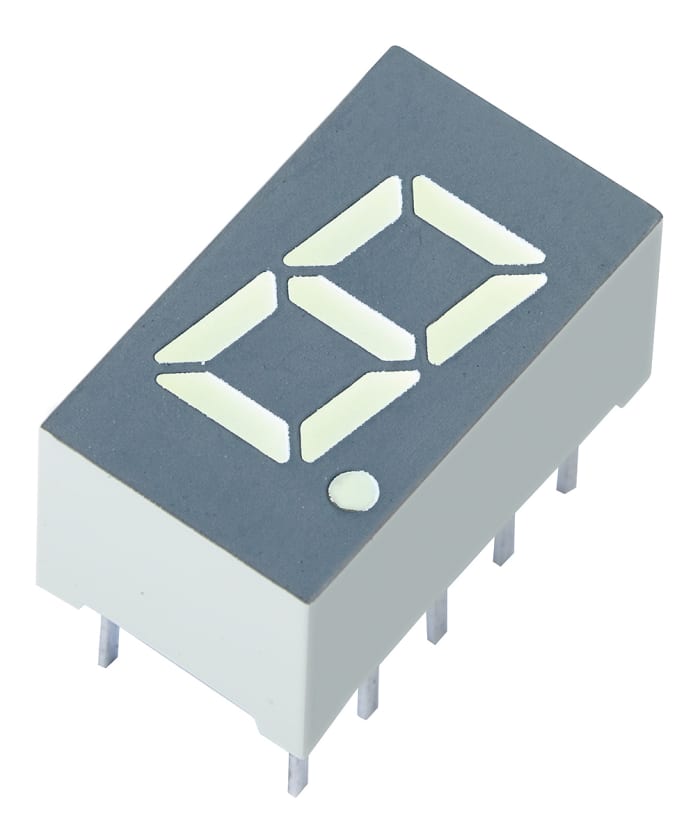

SA32-11GWA Kingbright 7 Segment LED Display (Gösterge), CA, Yeşil 7,1 mcd, RH DP 8mm

Kingbright Single Digit, 5.1 to 8.0mm A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	1
LED Colors	Green
Number of Segments	7
Dominant Wavelength	568 nm
Character Width	4.4mm
Character Height	8mm
Common Connection	Anode
Mounting Type< /strong>	Through Hole
External Dimensions	7.5 x 13 x 6.5mm
External Height	13mm
External Width	13mm strong>	7.5mm
External Depth	6.5mm
Luminous Intensity	7.1 mcd
Face Color	Gray
Power Loss	62.5mW
Forward Voltage	2.2 V
Minimum Operating Temperature-40°C
Operating Temperature Range	-40 → +85°C
Forward Current	25mA
Maximum Operating Temperature	25mA
Maximum Operating Temperature	+85°C
Decimal Direction	Right Side
Origin	CN

SA32-11GWA with product code You can purchase Kingbright branded SA32-11GWA Kingbright 7 Segment LED Display (Gösterge), CA, Yeşil 7,1 mcd, RH DP 8mm product from our company.
