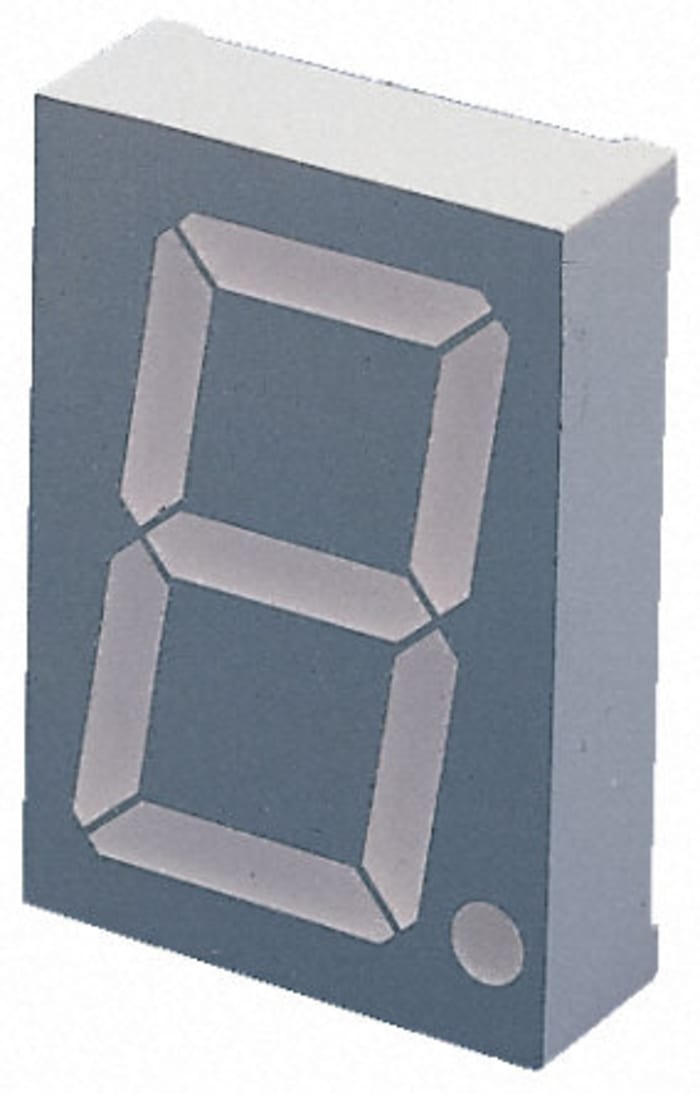

Kingbright SBA15-11SURKCGKWA 7 Segment LED Display (Gösterge), CA, Yeşil, Kırmızı 100,000 μcd, 210,000 μcd, RH DP 38mm

Kingbright Single Digit, 38 to 57mm A range of single-digit 7-segment LED displays from Kingbright. The displays exhibit excellent visibility with high on/off contrast, and are available in a range of colours.

Brand	Kingbright
Screen Type	7 Segments
Number of Characters	1
LED Colors	Green, Red
Number of Segments	7
Dominant Wavelength	570 / 630 nm
Character Width	22mm
Character Height	38mm
Common Connection	Anode
Mounting Type	Through Hole
External Height	12.5mm
External Width	33.2mm
External Depth	strong>	47mm
External Dimensions	33.15 x 47 x 12.5mm
Luminous Intensity	100,000 μcd, 210,000 μcd
Face Color	Gray
Forward Voltage	3.9 V, 4.2 V
Power Loss	75 mW, 150 mW
Minimum Operating Temperature	-40°C
Series	SBA15
Operating Temperature Range	-40 → +85°C
Forward Current	30mA
Maximum Operating Temperature	+85°C
Decimal Direction	Right Side
Origin	CN

SBA15-11SURKCGKWA with product code You can purchase Kingbright branded Kingbright SBA15-11SURKCGKWA 7 Segment LED Display (Gösterge), CA, Yeşil, Kırmızı 100,000 μcd, 210,000 μcd, RH DP 38mm product from our company.
