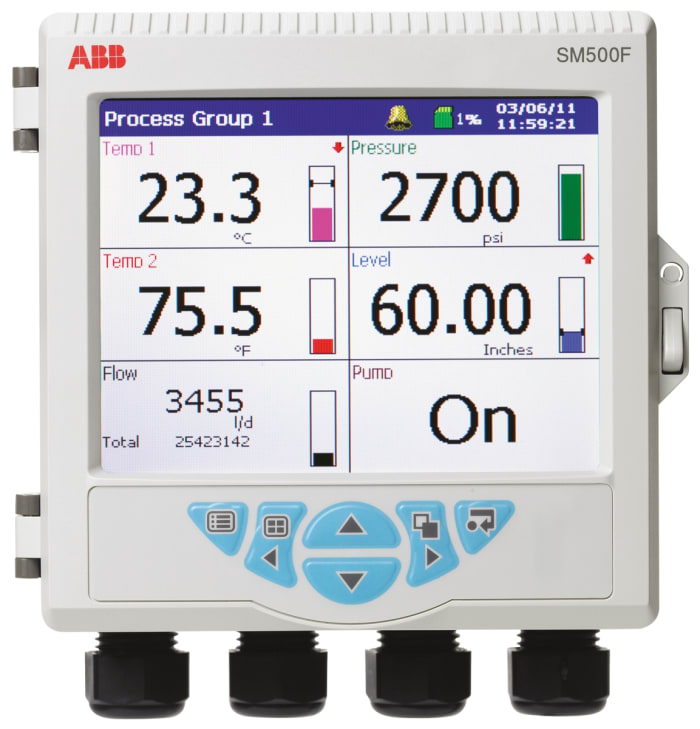

ABB SM503FC/B2E0020E/STD Grafik Kaydedici (Chart Recorder), Videografik

SM500F Field Mountable Videographic Recorder The SM500F is a field-mountable paperless recorder. Its unique enclosure design enables wall, pipe or panel mounting of the unit. Process data is displayed clearly to the local operator through various display formats, including chart, bar graph and digital indicator displays. Also, process data is logged securely to the removable SD memory card. Ethernet communications provide convenient remote monitoring of the process and access to logged data (
< /tbody>

Brand	ABB
Graphic Type	Videographic
Number of Entries	3
Measured Parameter	Current, Resistance, Temperature, Voltage
Maximum Temperature Measurement	+1300 (N) °C, +1300 (N) °C, +1700 (R) °C, +1700 (S) °C, +1800 (W) °C, +300 (T) °C, +900 (E) °C, +900 (J) °C, +900 (L) °C
Number of Outputs
strong>	4
Maximum Current Measurement	50mA
Maximum Operating Voltage	265V ac
Maximum Resistance Measurement	10 kΩ, 550 Ω
Maximum Voltage Measurement	25 V, 150 mV
Recorder Input Type	Digital, mA, mV, Resistance, RTD, Thermocouple, Voltage
Model Number p	SM503FCB
IP Value	IP66
Best Temperature Measurement Accuracy	0.1%
Power Supply	Network
Width	79mm
Length	144mm
Height	144mm
Best Current Measurement Accuracy	0.2%
Weight	1kg
Minimum Operating Voltage< /strong>	85V ac
Best Voltage Measurement Accuracy	0.1%, 0.2%
Best Resistance Measurement Accuracy	0.1%

SM503FC/B2E0020E/S with product code You can purchase ABB branded ABB SM503FC/B2E0020E/STD Grafik Kaydedici (Chart Recorder), Videografik product from our company.
