SP2801 100 002 001 Novotechnik Angular Potentiometer Position Sensor 1

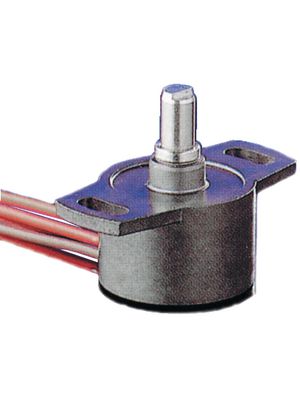

SP2801 100 002 001 Novotechnik Angular Potentiometer Position Sensor 100° 3kOhm

Brand: Novotechnik Product code:SP2801 100 002 001 Datasheet

Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.

Company Name

Authorized person

Telephone

E-mail address

Offer Note

I have read, understood and accepted KVKK and Privacy Text.

Explanation

Angular Potentiometer Position Sensor, Type=SP2801 100 002 001, Alternative (Alias)=SP 2801-100-002-001, Angle - Electrical=100 °, Angle - Mechanical=360 °, Linearity (±)=1 %, Operating Temperature Max.=150 °C, Operating Temperature Min.=-40 °C, Operating Voltage Max.=42 V, Recommended Operating Wiper Current=1 µA, Resistance=3 kΩ, Settable Torque=0.2 Ncm, Tolerance=20 %, Angular Position Sensor Output Type=Resistive, Mounting Type=Cable Mount, Protection Rating=IP54, Termination Type=Cable Terminal

SP2801 100 002 001 with product code You can purchase Novotechnik branded Angular Potentiometer Position Sensor 100° 3kOhm product from our company.
