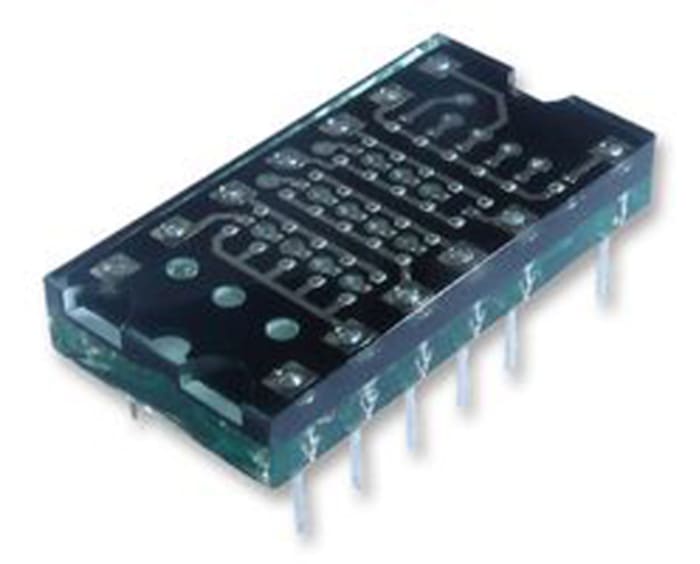

Kingbright TA03-11GT Dot Matrix LED Display (Gösterge), CA, 7 x 5 Dot Matrix, Yeşil 8,3 mcd 8.9mm

Kingbright Dot Matrix LED Displays 5x7 - 7.62mm This family of dot matrix displays, from Kingbright, are available in a variety of single colour options. They have a 5x7 dot matrix with a 0.3 inch matrix height. They offer low current operation and are mechanically rugged.

Brand	Kingbright
Screen Type	Dot Matrix
LED Colors	Green
Dominant Wavelength	568 nm
Character Width	6mm
Character Height	8.9mm
Common Connection	Anode
Mounting Type	Through Hole
External Depth	18.5mm
External Dimensions	9.8 x 18.5 x 3.1mm
External Height	3.1mm
External Width	9.8mm
Luminous Density	8.3 mcd
Face Color	Gray
Forward Voltage	2.2 V
Power Loss	62.5mW
Minimum Operating Temperature	-40°C
Operating Temperature Range	-40 → +85°C
Forward Current	25mA
Maximum Operating Temperature	+85 °C
Series	TA03
Dot Matrix Dimensions	7 x 5
High Points	7
Dot Matrix Format	5 x 7
Large Dots	5
Origin	CN

TA03-11GT with product code You can purchase Kingbright branded Kingbright TA03-11GT Dot Matrix LED Display (Gösterge), CA, 7 x 5 Dot Matrix, Yeşil 8,3 mcd 8.9mm product from our company.
