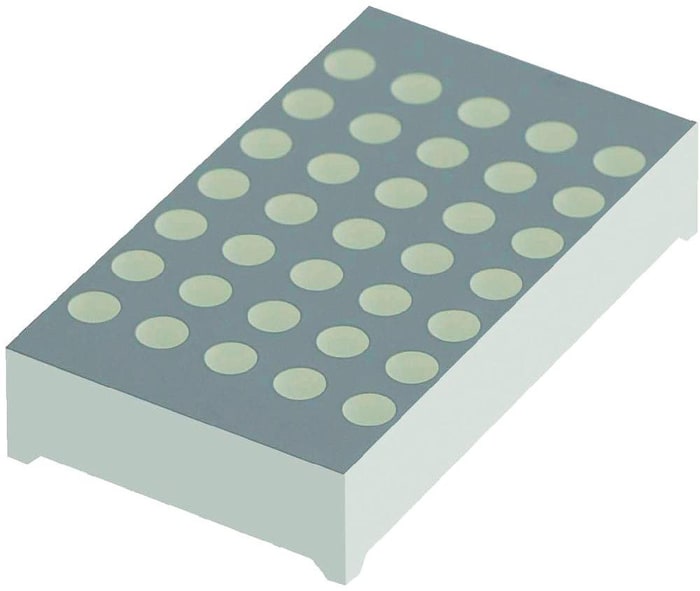

Kingbright TBA12-11SURKCGKWA Dot Matrix LED Display (Gösterge), CA, 7 x 5 Dot Matrix, Yeşil, Kırmızı

Kingbright Dot Matrix LED Displays 5x7 - 30mm This family of dot matrix displays, from Kingbright, are available in a variety of single and bi colour options. These 30.6mm displays have a 5x7 dot matrix. Each 3mm dot provides high contrast and light output.

Brand	Kingbright
Screen Type	Dot Matrix
LED Colors	Green, Red
Dominant Wavelength	570 / 630 nm
Character Width	21mm
Character Height	30.5mm
Common Connection	Anode
Mounting Type	Through Hole
External Dimensions	22.9 x 39 x 8mm
External Height	8mm
External Width	22.9mm
External Depth	39mm
Luminous Intensity	73,000 ucd, 130,000 ucd
Face Color	Gray
Forward Voltage	2.1 V
Power Loss	75mW
Series	TBA12
Operating Temperature Range	-40 → +85°C
Next Current	30mA
Maximum Operating Temperature	+85°C
Dot Matrix Dimensions	7 x 5
High Dots	7
Dot Matrix Format	5 x 7
Broad Points	5
Minimum Operating Temperature	5 strong>	-40°C
Origin	CN

TBA12-11SURKCGKWA with product code You can purchase Kingbright branded Kingbright TBA12-11SURKCGKWA Dot Matrix LED Display (Gösterge), CA, 7 x 5 Dot Matrix, Yeşil, Kırmızı product from our company.
