Linear Potentiometer Position Sensor Voltage Divider 150mm 0.05% 6kOhm Pivot Head Mount Connector, 3-Pin TX2

Home Products Uncategorized Linear Potentiometer Position Sensor Voltage Divider 150mm 0.05% 6kOhm Pivot Head Mount Connector, 3-Pin TX2
Linear Potentiometer Position Sensor Voltage Divider 150mm 0.05% 6kOhm Pivot Head Mount Connector, 3-Pin TX2

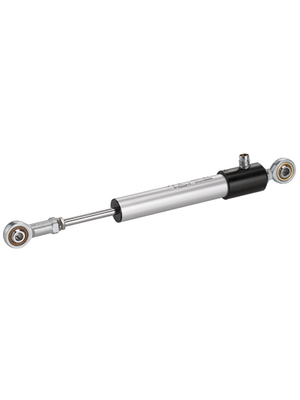

TX2 0150-716-002-101 Novotechnik Linear Potentiometer Position Sensor Voltage Divider 150mm 0.05% 6kOhm Pivot Head Mount Connector, 3-Pin TX2

Brand: Novotechnik Product code:TX2 0150-716-002-101 Datasheet
Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.
Explanation
Linear Potentiometer Position Sensor, Type=TX2 0150-716-002-101, Accuracy (%)=-999, Displacement Speed=5 m/s, Linearity (±)=0.05 %, Operating Temperature Max.=85 °C, Operating Temperature Min.=-40 °C, Operating Voltage Max.=42 V, Resistance=6 kΩ, Stroke Length - Electrical=150 mm, Stroke Length - Mechanical=158 mm, Tolerance=20 %, Linear Position Sensor Output Type=Voltage Divider, Mounting Type=Pivot Head Mount, Protection Rating=IP67, Termination Type=Connector, 3-Pin, Series=TX2

TX2 0150-716-002-101 with product code You can purchase Novotechnik branded Linear Potentiometer Position Sensor Voltage Divider 150mm 0.05% 6kOhm Pivot Head Mount Connector, 3-Pin TX2 product from our company.
