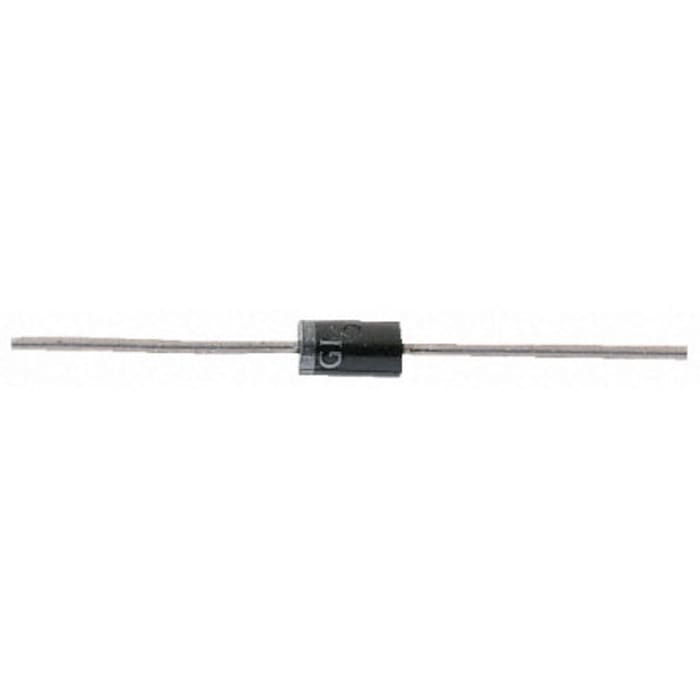

Vishay UG2D-E3/54 Diyot, Hızlı Kurtarma, 200V, 2A, 15ns, 2-Pinli DO-15

Home Products Uncategorized Vishay UG2D-E3/54 Diyot, Hızlı Kurtarma, 200V, 2A, 15ns, 2-Pinli DO-15
Vishay UG2D-E3/54 Diyot, Hızlı Kurtarma, 200V, 2A, 15ns, 2-Pinli DO-15

UG2D-E3/54 Vishay Vishay UG2D-E3/54 Diyot, Hızlı Kurtarma, 200V, 2A, 15ns, 2-Pinli DO-15

Brand: Vishay Product code:UG2D-E3/54
Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.
Explanation
Ultrafast Recovery Rectifiers 2A to 5A, Vishay Semiconductor Features
• Glass passivated chip junction,
• Ultrafast reverse recovery time,
• Low forward voltage drop,
• Low switching losses, high efficiency,
• High forward surge capability,
• Solder dip 275 °C max. 10 s, per JESD 22-B106,

Typical Applications
For use in high frequency rectification and freewheeling application in switching mode converters and inverters

BrandVishay
Mounting TypeThrough Hole
Package TypeDO-15
Maximum Continuous Forward Current2A
Peak Reverse Recurrent Voltage200V
Diode ConfigurationSingle
Rectifier TypeSwitching
Diode TypeSilicone Connection
Number of Pins2
Maximum Forward Voltage Drop950mV
Number of Elements per Chip1
Diode TechnologySilicone Junction
Top Reverse Recovery Time15ns
Diameter3.6mm
Peak Non-repetitive Forward Inrush80A


UG2D-E3/54 with product code You can purchase Vishay branded Vishay UG2D-E3/54 Diyot, Hızlı Kurtarma, 200V, 2A, 15ns, 2-Pinli DO-15 product from our company.
