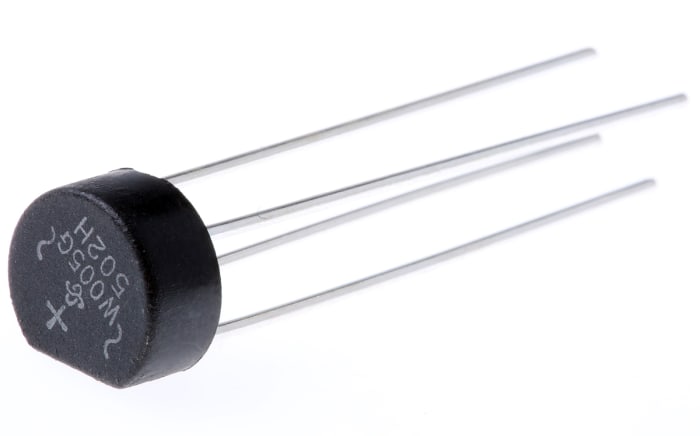

W005G-E4/51 Vishay Vishay Bridge Rectifier, 1.5A, 50V, 4-Pin

Brand: Vishay Product code:W005G-E4/51

Request a Quote Fill out the form below to get information about stock, price and delivery. We will get back to you as soon as possible.

Company Name

Authorized person

Telephone

E-mail address

Offer Note

I have read, understood and accepted KVKK and Privacy Text.

Explanation

Vishay WxxG Series Bridge Rectifier

Brand Vishay
Peak Average Forward Current< /strong> 1.5A
Bridge Type Single Phase
Peak Reverse Recurrent Voltage 50V
Mounting Type Through Hole
Package Type WOG
Number of Pins 4
Configuration Single
Peak Non-Repeating Forward Inrush 50A
< strong>Maximum Operating Temperature +150°C
Minimum Operating Temperature -55°C
Peak Forward Voltage 1V
Peak Reverse Current 5µA
Length 9.86mm
Dimensions 9.86 x 8.84 x 5.6mm
< strong>Height 5.6mm
Width 8.84mm

W005G-E4/51 with product code You can purchase Vishay branded Vishay Bridge Rectifier, 1.5A, 50V, 4-Pin product from our company.
